LM-35 Temperature measurement

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature.

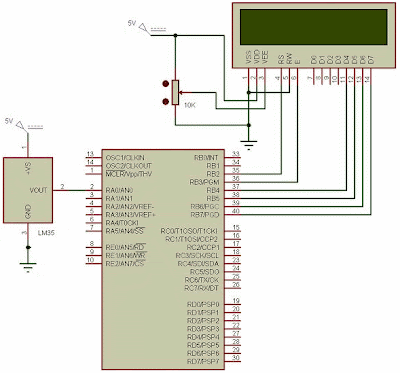

LM35 sensor temprature circuit
The LM35 is an accurate temperature sensor that will provide an analogue output of 10mV per degree C. It is very easy to interface one with a PIC 16f877.
CODE
The program is written in basic, proton compiler.

Device 16F877A
Declare XTAL 4


Declare LCD_TYPE 0 ' Type of LCD Used is Alpha
Declare LCD_DTPIN PORTB.4 ' The control bits B4,B5,B6,B7
Declare LCD_RSPIN PORTB.2 ' RS pin on B2
Declare LCD_ENPIN PORTB.3 ' E pin on B3
Declare LCD_INTERFACE 4 ' Interface method is 4 bit

Dim ADC_Result As Float
Dim Temp_Float as Float

ADCON1 = %10000000 ' Set all to analogue inputs (PORTA)
TRISA = $FF ' Declare porta as all inputs
Delayms 150
Cls

Main:

ADC_Result = ADIN 0
Temp_Float = ADC_Result * 5000 / 1023 ' to reduce decimal error
Print At 1,1, Dec1 Temp_Float , 0, "C "

Return
